DMP3068L-13-VB is a SOT23 package P-Channel field effect MOS tube

DMP3068L-13-VB is a SOT23 package P-Channel field effect MOS tube

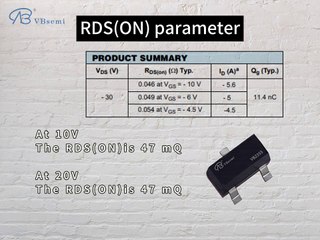

Official Website: #Chipbr "VBsemi DMP3068L-13-VB Parameters: br - Package: SOT23 br - Type: P-channel MOSFET br - Drain-source voltage (Vds): -30V br - Continuous drain current (Id): -5.6A br - On-resistance (RDS(ON)): 47mΩ at VGS=10V, VGS=20V br - Threshold voltage (Vth): -1V br br Application Overview: br VBsemi DMP3068L-13-VB is a P-channel MOSFET in a SOT23 package suitable for a variety of applications. Here is a brief overview of its parameters and applications: br br 1. **Package and type: ** br - SOT23 package, suitable for designs with space constraints. br - P-channel MOSFET, suitable for controlling positive electrical signals. br br 2. **Electrical Characteristics:**br - **Voltage Ratings:**br - Drain-Source Voltage (Vds): -30V, suitable for low voltage applications. br - **Current Ratings:**br - Continuous Drain Current (Id): -5.6A, can handle medium current loads. br - **On-Resistance:**br - RDS(ON): 47mΩ at VGS=10V, VGS=20V, indicating low resistance for efficient turn-on. br br 3. **Threshold Voltage:**br - Threshold Voltage (Vth): -1V, specifies the gate voltage at which the MOSFET starts to turn on. br br Applications:br The DMP3068L-13-VB MOSFET can be used in a variety of electronic applications, including:br br 1. **Power Management:**br - Power switching circuits. br - Battery protection circuits. br br 2. **Signal switching:**br - Signal amplification and switching circuits. br - Audio amplifiers. br br 3. **LED drivers:**br - LED lighting applications. br - LED display drivers. br br 4. **Motor control:**br - Small motor control circuits. br - Robotics and automation. br br 5. **Portable devices:**br - Compact and portable electronic devices. br - Mobile phones, tablets, and other battery-powered gadgets. br br By making full use of its SOT23 package and P-channel characteristics, the DMP3068L-13-VB is suitable for a wide range of applications that require efficient energy management and signal switching.


User: VBsemi

Views: 4

Uploaded: 2025-03-10

Duration: 01:10
